The intricate savoir-faire in carbon fiber at Bugatti

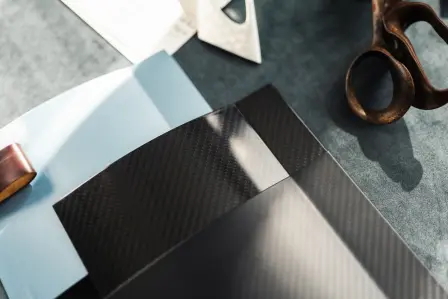

Carbon fiber body panels are made from sheets of overlapping woven fibers that are extremely thin, at around a tenth of the width of a strand of human hair. But the way these fibers are arranged is absolutely crucial to the strength of the sheets, most rigid in the direction that the fibers are pointing. And although the process of aligning them may be difficult and time-consuming, the benefits speak for themselves; body components made of carbon fiber weigh 20-30% less than a corresponding element made of aluminum, or 50% less in the case of steel, while still being very resistant.

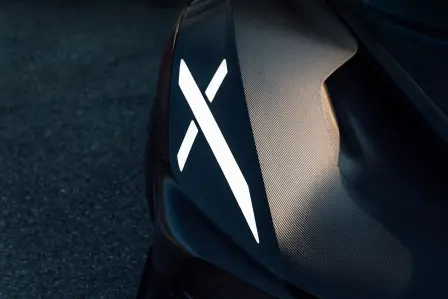

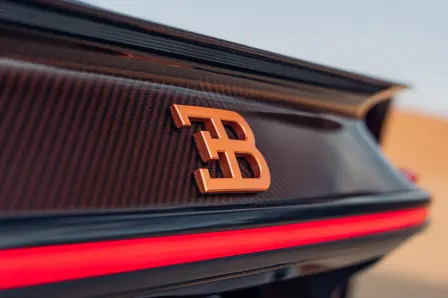

Just as Bugatti did with the Veyron Pur Sang in 2007, today it offers customers a wide range of nine visible tinted carbon fiber colors for the body, where the weave of the fibers is on full display – covered only with transparent lacquer, which can also be tinted in one of nine different finishes. But the process of creating this finish takes months to perfect, requiring the skill of experienced craftspeople that understand both the visual and structural importance of carbon fiber.

The largest part – a side panel which is around 2m long – takes nearly a week to produce, culminating in the raw materials being placed into a mold and then “baked” in an autoclave at 248°F (120°C) under high pressure and for around two hours.

For these panels, Bugatti engineers will have worked with materials experts to dictate exactly which direction the carbon fibers should flow to give the car the necessary rigidity. But for those customers that opt for a visible carbon fiber finish, it is the design team that decides the direction of the fibers in the first layer. The desire is to create a flowing pattern across the whole surface of the car, visually strengthening its lines while also lining up perfectly between panels.

The design team requires the carbon fibers to be aligned at a 45° angle, with a perfect fishbone in the middle. Anything more than 1 or 2° out and the panel will have to be made from scratch. Any fibers out of position, any fraying or any bumps or kinks in the material and the panel will have to be made again. The materials experts and the design team work vigorously to ensure every single millimeter of the surface is free from imperfection.

But even once these panels reach the impeccable standards of Bugatti, the pieces must all come together in perfect harmony as part of one of the most complex engineering jigsaw puzzles in the world. The process to perfectly align the flow of the carbon weave – whilst ensuring there is an optimum ‘flushed gap’ between all parts and components – is one that is meticulous, time-consuming and highly detailed-driven. But it’s a process that Bugatti has honed over many years, ensuring each and every automobile that leaves the Atelier in Molsheim is flawless.

Once the puzzle is complete, the panels can be finished. Paint technicians apply a clearcoat to them individually, which is sanded and polished before being applied again to create a rich sheen that emphasizes the weave. If a customer wishes, a subtle tint can be applied in the next layer to give the weave a color that ensures the beauty of the carbon fiber remains visible. And then depending on the finish, up to three further layers of clearcoat are applied again, entirely by-hand and then polished into its final form.
